How to Optimize a Croqtile Block-Scaled FP8 GEMM: a Worklog

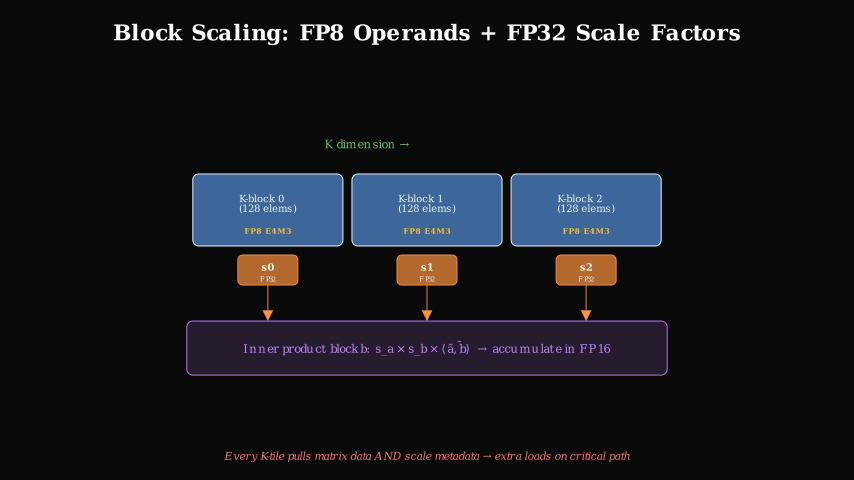

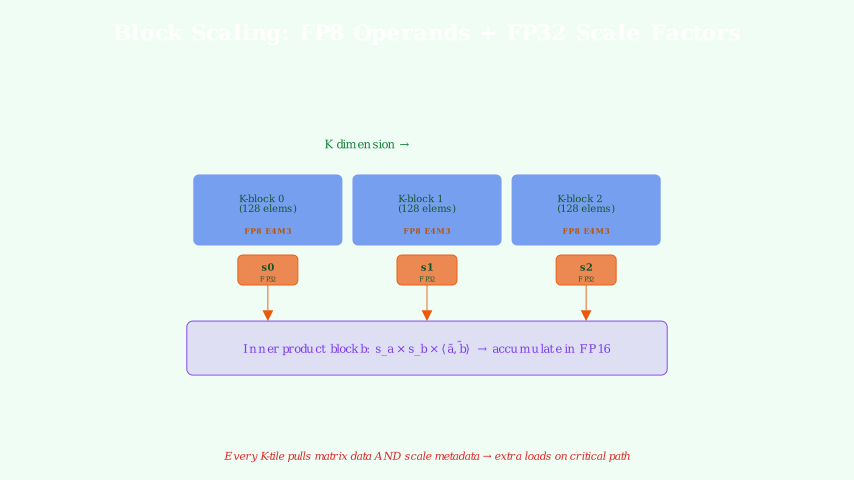

In this post, I'll optimize an FP8 E4M3 matrix multiply with per-block scaling on Hopper (SM90a), measured on H800 PCIe (114 SMs). Operands are E4M3, the accumulator stays in FP16, and along K every 128-element tile carries FP32 scale factors so inner products stay useful after quantization. This is the same family of tricks used in MXFP8-style training: FP8 for density, scales for fidelity.

What makes block-scaled GEMM interesting for optimization is that scales are first-class operands. Every K-tile iteration pulls matrix data and scale metadata. The Croqtile surface expresses this as mma.row.row.scale instead of a plain mma.row.row — same tiling discipline, extra operands, same pressure to hide TMA latency, but with a third critical path (scale fetch) that does not exist in dense or 2:4 sparse GEMM.

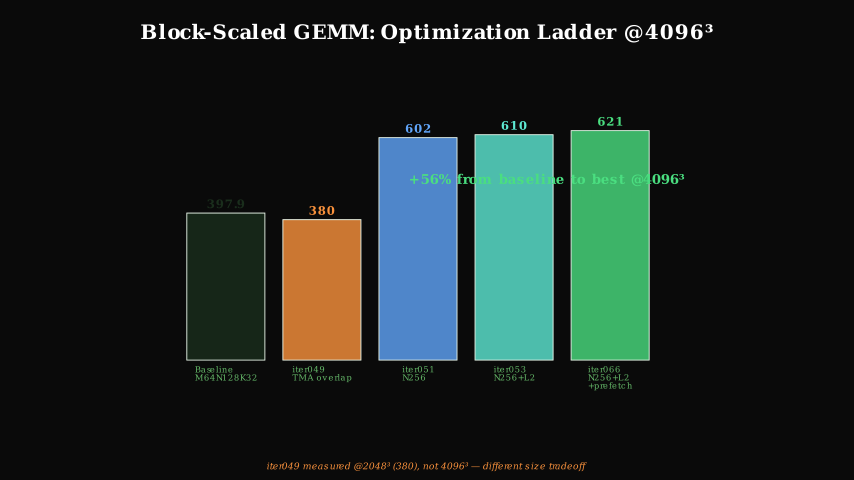

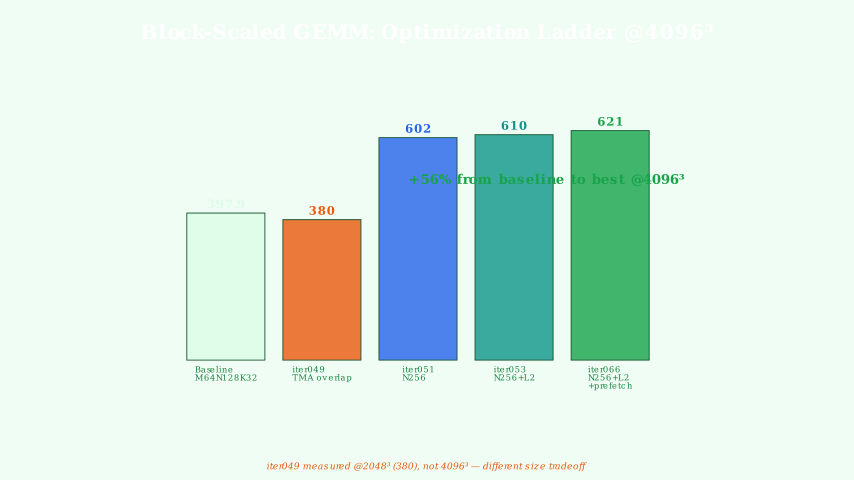

Step	Kernel	TFLOPS @2k	TFLOPS @4k	Δ vs baseline @4k
0	Baseline: M64N128K32	314.2	397.9	—
1	TMA overlap with scale accumulation (iter049)	380	—	+21% @2k
2	N256 WGMMA (iter051)	372	602	+51%
3	N256 + L2 256B promotion (iter053)	—	610	+53%
4	N256 + L2 + prefetch scale_a (iter066)	—	621	+56%

The Baseline Kernel

The baseline blockscale_gemm_dyn_sm90.co follows the dense GEMM skeleton — TMA in, WGMMA-shaped loads, accumulator in registers — except the inner MMA is mma.row.row.scale, which ties WGMMA execution on E4M3 operands to the scale factors for the active K slice.

Baseline control flow, one K-tile at a time:

1. TMA lhs and rhs subspans of shape (WM, TK) and (WN, TK) into SMEM with swizzle matching TK
2. Inner loop over WARP_K chunks: MMA load fragments from SMEM, then mma.row.row.scale with views into scale_lhs and scale_rhs indexed by block_m, block_n, and iv_k
3. After all K tiles, store accumulator to SMEM and TMA out to global output

The baseline uses M64 × N128 × K32 per warpgroup inner steps, TILE_K=128 (four K32 steps per tile), swizzle 128 on TMA. Readers coming from Chapter 4 (MMA) should treat mma.row.row.scale as the blockscale analogue of mma.row.row.

Measured baseline

Shape	TFLOPS	vs 3026 peak
2048³	314.2	10.4%
4096³	397.9	13.2%

13% of FP8 peak is not a bug — block-scaled GEMM issues more global traffic per FLOP than dense (matrix + scales), and mma.row.row.scale does not pack identically to the simplest FP8×FP8→FP32 throughput tests. But 13% leaves a large software margin, which is what we are here to close.

---

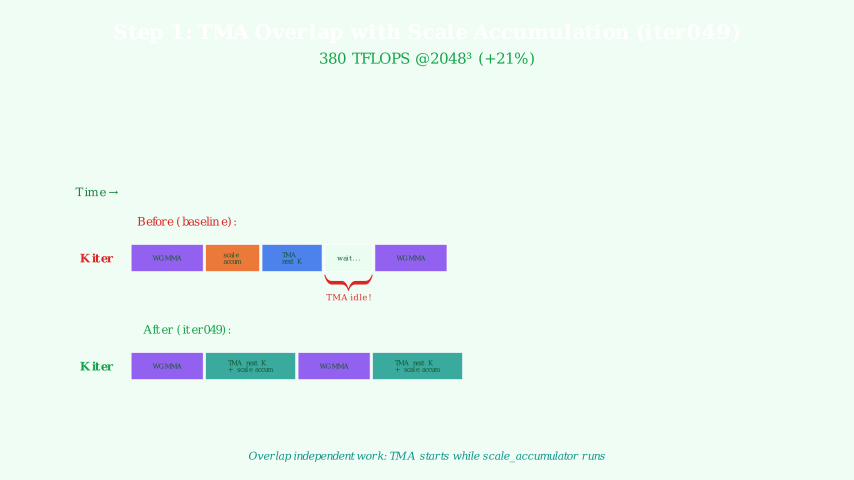

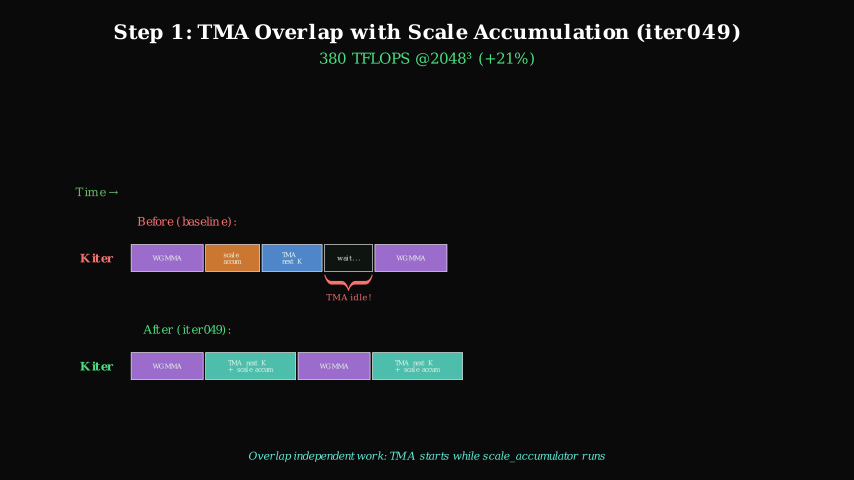

Step 1: TMA Overlap with Scale Accumulation — iter049

The problem. In the baseline, the consumer finishes WGMMA, does scale_accumulator work, and only then starts the next K-tile's TMA. TMA sits idle across the handoff — scale accumulation and TMA are serialized when they could overlap.

The change. Issue the next K-block's TMA loads as soon as the WGMMA wait completes, so memory latency hides behind scale-related math that does not need the new operands yet. This is the same instinct as Chapter 6 (synchronization): move independent work so the longest-latency piece starts earlier.

Block-scaled GEMM adds scale_accumulator as a third phase beside load and MMA. iter049 shows that third phase can share the bubble with TMA.

Result: 380 TFLOPS at 2048³ (+21% over 314.2). No structural geometry change — just better scheduling within the existing tile.

---

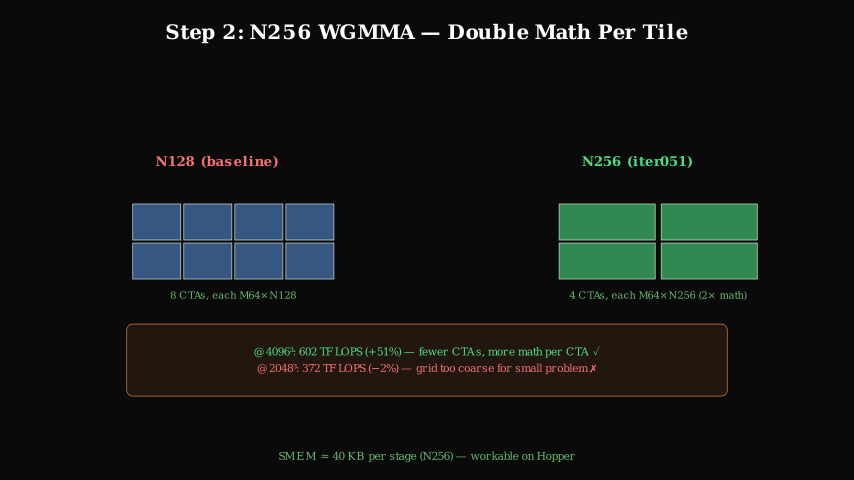

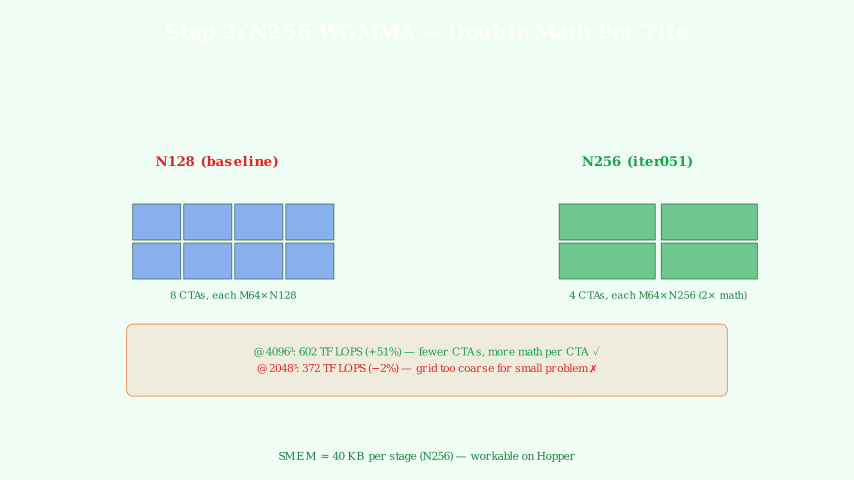

Step 2: N256 WGMMA — Double the Math Per Tile — iter051

The problem. N128 tiles finish K-pipeline steps quickly but launch many CTAs along N. On large N, wave quantization and per-CTA overhead hurt.

The change. Move to M64N256K32 — double the N extent.

SMEM impact: WN=256 → (64 + 256) × 128 × 1B = 40 KB per stage for operand staging. Workable on Hopper, but reduces headroom for extra pipeline stages.

Result: 602 TFLOPS at 4096³ (+51% over baseline). But 2048³ drops to 372 TFLOPS (vs 380 on iter049) — fewer blocks cover N, the grid is coarser. N256 trades small-cube grid density for large-cube throughput.

This is the same WN tradeoff as in the dense FP16 story: more math per block, fewer blocks, heavier SMEM. For block-scaled GEMM, RHS and scale_rhs footprint both grow with N.

---

Step 3: L2 Promotion on RHS TMA — iter053

The problem. At 4096³, RHS panels are large. TMA traffic does not always stick in L2 — lines get evicted before they can be reused across K iterations or neighboring CTAs.

The change. Set CU_TENSOR_MAP_L2_PROMOTION_L2_256B on the RHS tensor map. This Hopper cache hint promotes lines into L2 with 256B granularity.

Result: 610 TFLOPS at 4096³ (+8 TFLOPS over iter051). Nearly free: one flag on the TMA descriptor, zero change to the compute path. When tile geometry and scheduling are already tuned, cache hints are the next lever.

---

Step 4: Prefetch scale_a — iter066

The problem. Scale loads inside a tight WGMMA loop with short issue interval can stall the consumer. Per-row scale_a loads compete with WGMMA for issue slots.

The change. Prefetch scale_a into registers before the inner WGMMA body, so load latency hides behind independent setup or prior WGMMA work.

Result: 621 TFLOPS at 4096³ — +56% vs the 397.9 baseline.

By this point, the kernel is doing heavy WGMMA and wide N. Remaining slack sits in operand latency. Block-scaled GEMM makes scales first-class operands — treat them like any other latency-bound input. Software prefetch, double-buffering, or DMA-to-SMEM are all design axes when registers or scheduling bind.

---

Source Variants and Alternative Approaches

Under blockscale_gemm_v2/, several .co files explore alternative scale movement:

Variant	Approach
rhs_scale_dma_smem / scale_dma_smem	Stage scales via TMA into shared memory
transposed_scale	Change scale layout for coalescing vs index cost
tileN	Tile along N explicitly in Croqtile structure
..._warpspec_persis_1p1c.co	Persistent kernel variant (Ch5)

These document that scale DMA to SMEM is a viable alternative when register pressure or load scheduling hurts WGMMA issue interval.

Reproduction

./croqtile -gs -t cute -arch=sm_90a --use-warpspec --stmatrix \
  benchmark/performance/blockscale_gemm_v2/blockscale_gemm_e4m3_dyn_sm90_warpspec_1p1c.co \
  -o /tmp/bs.cute.result && bash /tmp/bs.cute.result --execute

Pre-generated iter049/051/053/066 trees ship with run.sh for bit-identical reproduction. Full iteration history: 71 iterations in README_blockscale_gemm_e4m3_aitune_2026-03-22.md.

---

Conclusion

Block-scaled GEMM follows the same arc as dense and sparse: schedule first, widen second, cache-tune third. But it adds scale tensors as first-class operands that need the same latency-hiding discipline as matrix data.

The largest single structural win was N256 (iter051, +51% at 4k) — more math per CTA, fewer CTAs. But the first optimization, iter049 (+21% at 2k), showed that scale scheduling matters as much as tile geometry: the gap between "WGMMA done" and "next TMA started" was idle bandwidth that scale accumulation could fill.

L2 promotion (iter053) and scale prefetch (iter066) are late percentage gains on an already strong kernel — they target memory hierarchy and operand latency, not raw WGMMA width. When you have tuned geometry and scheduling, these are the levers that remain.
