C++ Interop: Device Functions, Inline Code, and the Preprocessor

Every high-level language needs an escape hatch to the layer below. Python has ctypes and C extensions. Rust has unsafe blocks and extern "C". Java has JNI. The reason is always the same: no matter how expressive the abstraction, some hardware feature, some legacy library, some performance-critical intrinsic lives outside the language's domain.

Croqtile's interoperability story has three parts:

1. __device__ functions — Standard CUDA device functions that coexist with __co__ functions in the same .co file. The compiler passes them through unchanged.
2. __cpp__ — Inject verbatim C++ or PTX into the generated code for hardware-specific instructions the DSL does not emit.
3. The preprocessor — #define, #if, #ifdef, #error for compile-time configuration, the same role #define plays in C/C++ codebases.

So far the tutorial has built a stack of abstractions: tiles, parallelism, MMA, pipelines, events, TMA. That is the Croqtile you want to live in. This chapter is about the times you need to step outside.

How .co files compile

A .co file mixes three kinds of code. The Croqtile compiler treats each differently — and the difference matters for understanding what you can and cannot do at each boundary. Consider this skeleton:

__device__ __forceinline__ float fast_rsqrt(float x) {   // ①
  return __frsqrt_rn(x);
}

__co__ void my_kernel(f32 [M, N] input, f32 [M, N]& output) {   // ②
  parallel {bm, bn} by [cdiv(M, 64), cdiv(N, 64)] : block {
    // ... Croqtile orchestration: parallel, dma, mma, events ...
    __cpp__("asm volatile(\"setmaxnreg.dec.sync.aligned.u32 40;\");");   // ③
  }
}

int main() {   // ④
  auto in = croq::make_spandata<croq::f32>(M, N);
  auto out = my_kernel(in.view());
}

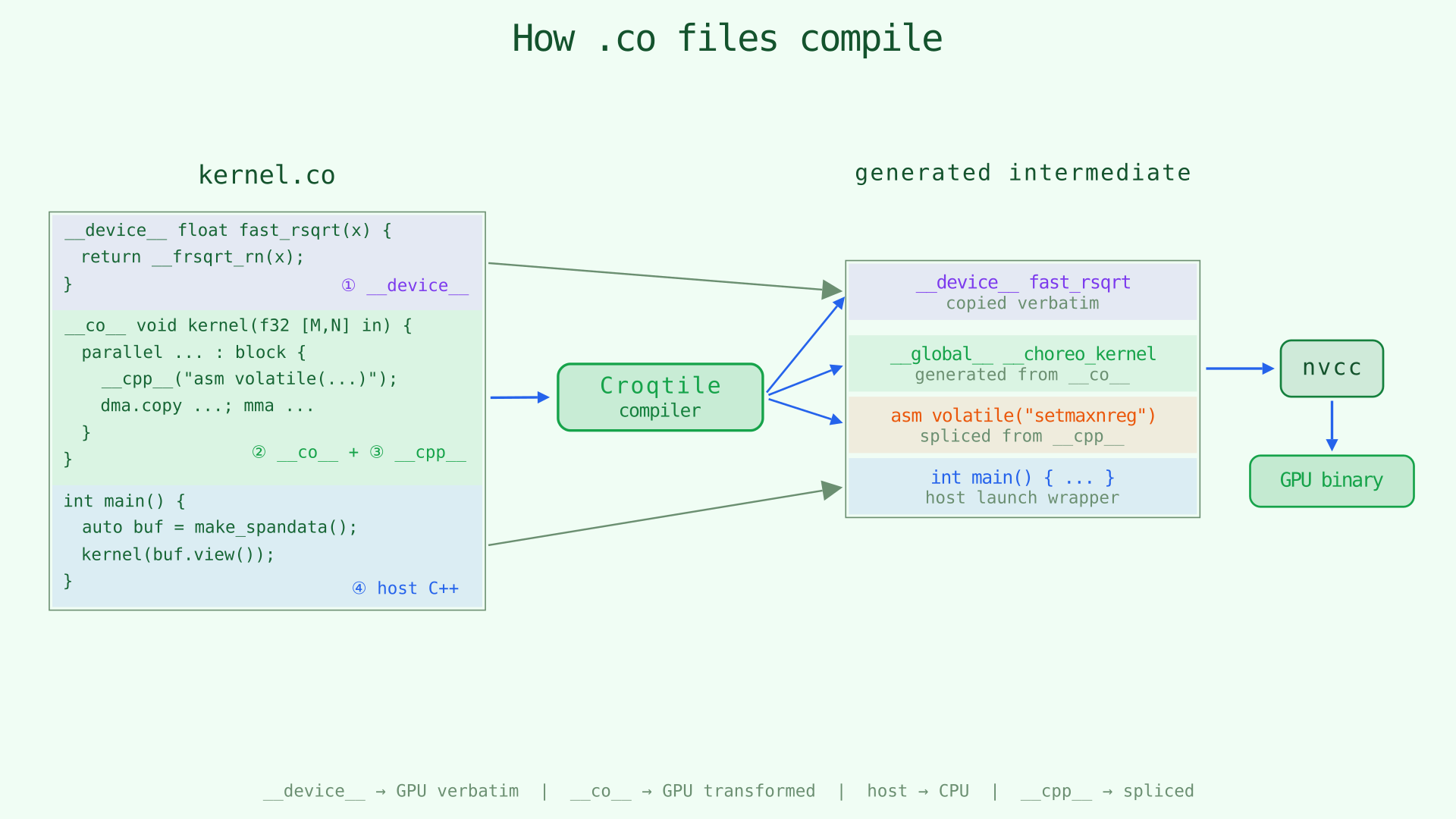

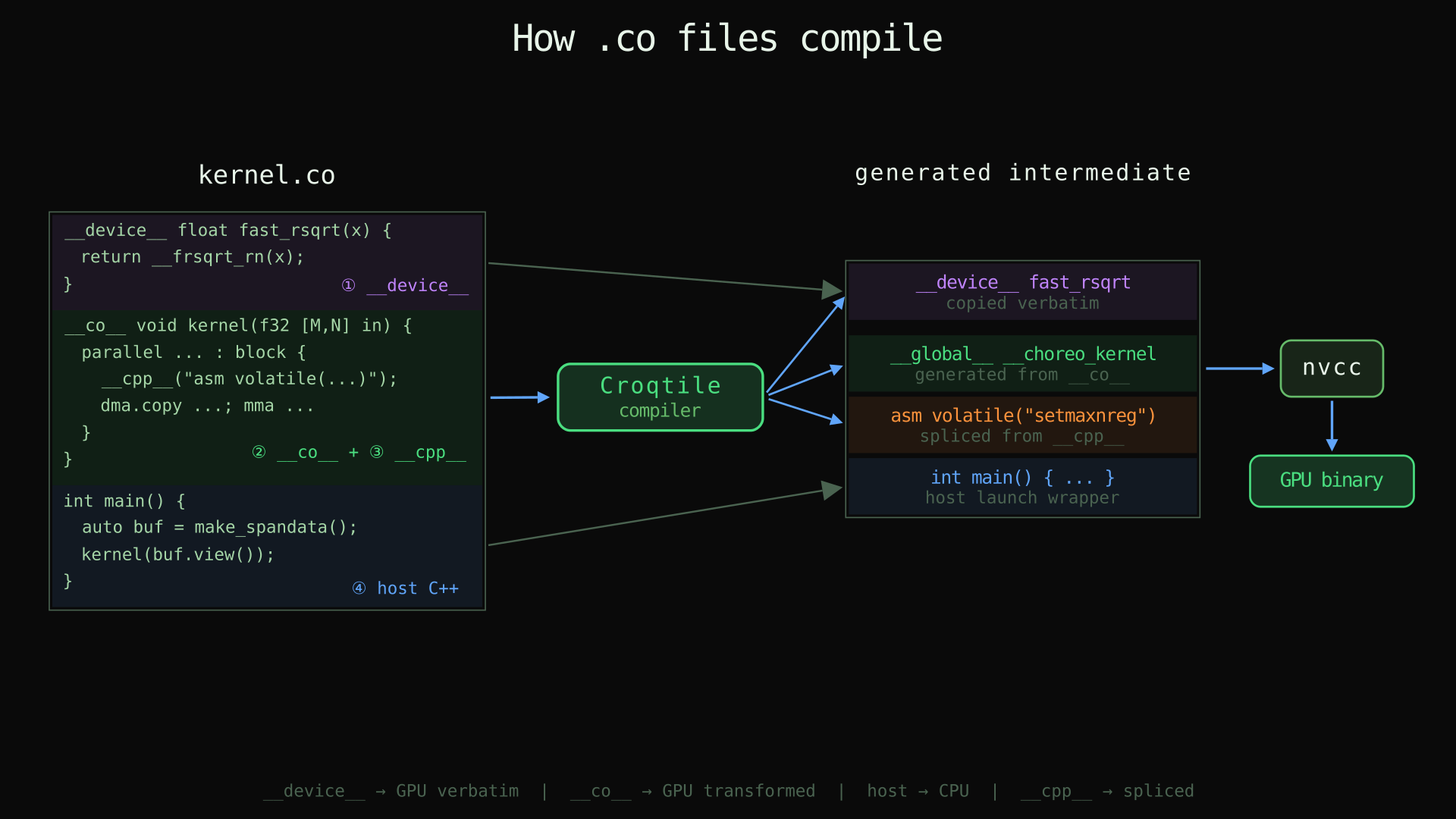

The compiler splits this into a single intermediate .cu file, then hands it to nvcc:

What happens to each region:

• ① __device__ functions are copied into the generated .cu file verbatim. The Croqtile compiler does not parse their bodies, does not rewrite them, does not manage their register allocation. They appear in the intermediate source exactly as you wrote them. This is the key distinction from __co__ functions: a __device__ function is pure CUDA that happens to live in a .co file.
• ② __co__ functions are the heart of Croqtile. The compiler transforms them into __global__ CUDA kernels: parallel becomes grid/block launch dimensions, dma.copy becomes cooperative load sequences (or TMA descriptor issues), mma becomes wgmma instructions, shared declarations become __shared__ allocations with computed sizes, events become barrier/mbarrier synchronization. The generated code is typically hundreds of lines of CUDA for a few dozen lines of Croqtile.
• ③ __cpp__ strings are spliced character-for-character into the generated CUDA at the point where they appear in the __co__ body. The compiler does not parse their contents — they must be valid at the splice point in the generated code.
• ④ Host code (main() and any other non-annotated functions) is passed through as ordinary C++ and ends up in the host compilation path.

All four regions merge into one .cu file. nvcc compiles the device code (__global__, __device__) into GPU machine code, compiles the host code into CPU code, and links them into a single binary. Run croqtile kernel.co -v (Chapter 9) to see the exact nvcc command the compiler issues.

__device__ vs ordinary C++ inline

Both __device__ functions and ordinary C++ functions are passed through unchanged, but they land in different compilation paths — and the distinction matters.

A __device__ function compiles to GPU machine code. It can use CUDA intrinsics (__shfl_xor_sync, __frsqrt_rn, atomicAdd), access __shared__ memory, and run inside a __global__ kernel. The __co__ body calls it with the call keyword, and the generated __global__ kernel invokes it directly on the device.

An ordinary C++ function (no __device__ or __co__ annotation) compiles to CPU code. It runs on the host — setting up buffers, launching kernels, printing results. You cannot call a host function from inside a __co__ body; the compiler would reject it because the generated __global__ kernel runs on the GPU.

The boundary is strict: __device__ lives on the device side of the nvcc split, host C++ lives on the host side. The __co__ function is the bridge — the compiler transforms it into a __global__ kernel (device side) and generates a host-side wrapper that launches it.

__device__ functions: CUDA alongside Croqtile

When an algorithm needs a helper function that operates at the warp or thread level — a custom reduction, a sorting network, a special math function — writing it as a standard CUDA __device__ function is often the natural choice. Croqtile does not need to manage these; they are plain CUDA.

A __co__ function can call a __device__ function using the call keyword:

template <int K>
__device__ void warp_topk(f32* vals, s32* idxs);

template <typename T>
__device__ __forceinline__ T SHFL_XOR(T var, int lane_mask, int width) {
  return __shfl_xor_sync(uint32_t(-1), var, lane_mask, width);
}

__co__ void moe_topk(f32 [N_TOKENS, N_EXPERTS] scores,
                     s32 [N_TOKENS, K]& topk_ids,
                     f32 [N_TOKENS, K]& topk_scores,
                     int N_BLOCK) {
  parallel n by N_BLOCK : block {
    foreach m in [ |scores.span| / N_THREAD / N_BLOCK ] {
      shared_scores = dma.copy scores.chunkat(n#m, _) => shared;

      parallel gid by [N_THREAD / 32] : group
        parallel tid by 32 : thread {
          score = shared_scores.data.span_as(|shared_scores.data.span|).at(gid # tid);

          local s32 [K] frag_idx{-1};
          local f32 [K] frag_val{-1.0f};
          frag_idx.at(0) = tid;
          frag_val.at(0) = score;

          call warp_topk<8>(frag_val, frag_idx);

          inthreads (tid == 0)
            foreach k in K {
              topk_ids.at(n#m, gid#k) = frag_idx.at(k);
              topk_scores.at(n#m, gid#k) = frag_val.at(k);
            }
        }
    }
  }
}

__device__ void warp_topk<K> — A templated device function implementing warp-level top-K selection using shuffle instructions. It operates on raw pointers (f32*, s32*), not Croqtile spans.

__device__ T SHFL_XOR — A warp shuffle intrinsic wrapper. The __forceinline__ and __shfl_xor_sync are standard CUDA — Croqtile passes them through.

call warp_topk<8>(...) — The call keyword invokes a __device__ function from within a __co__ body. Arguments are passed by pointer; the compiler handles the address translation between Croqtile spans and raw pointers.

inthreads (tid == 0) — Only thread 0 in each warp writes back results. Note this uses inthreads without .async — a sequential thread filter, not a concurrent region.

This pattern — Croqtile handles the parallelism, tiling, and memory orchestration; __device__ functions handle the per-warp algorithm — is common in production kernels like MoE (mixture-of-experts) top-K, custom reductions, and specialized math.

__cpp__: verbatim C++ injection

__cpp__ takes a string literal and pastes it, character for character, into the generated CUDA file. Whatever you place there must be valid at the splice point. The Croqtile compiler does not parse or rewrite the contents.

Two forms:

• __cpp__("...") — Ordinary string; best for short one-liners.
• __cpp__(R"(...)") — Raw string literal; use for asm volatile where escaping every " would be painful.

Register hints: setmaxnreg

The canonical __cpp__ use case is register redistribution in warp-specialized pipelines (Chapter 5). The producer warpgroup is register-light (mostly TMA loads), while the consumer is register-heavy (MMA accumulators). PTX's setmaxnreg instruction moves the register budget:

parallel p1 by 2 : group-4 {
  inthreads.async (p1 == 0) {
    __cpp__(R"(asm volatile("setmaxnreg.dec.sync.aligned.u32 40;");)");
    foreach {iv_k} in [cdiv(K, MATMUL_TILE_K)] {
      // ... TMA loads ...
    }
  }

  inthreads.async (p1 == 1) {
    __cpp__(R"(asm volatile("setmaxnreg.inc.sync.aligned.u32 216;");)");
    mc = mma.fill.f16 0.0f;
    // ... WGMMA compute ...
  }
}

Placement — Put the hint at the top of each inthreads.async branch, before the heavy loop.

Macros inside __cpp__ strings

A common mistake: assuming the preprocessor expands macros inside string literals.

#define PRODUCER_MAXNREG 40

inthreads.async (p1 == 0) {
  __cpp__(R"(asm volatile("setmaxnreg.dec.sync.aligned.u32 PRODUCER_MAXNREG;");)");
}

This fails — the preprocessor does not expand inside strings. Use numeric literals inside __cpp__ and #if / #error outside to enforce consistency:

#define PRODUCER_MAXNREG 40
#if PRODUCER_MAXNREG > 50
#error "Producer maxnreg too high for this tile config"
#endif

inthreads.async (p1 == 0) {
  __cpp__(R"(asm volatile("setmaxnreg.dec.sync.aligned.u32 40;");)");
}

The preprocessor

Croqtile's preprocessor runs before the main compiler pass. Macros expand in both __co__ regions and host C++ in the same .co file, so one definition keeps tile geometry and host-side checks aligned.

Directive	Role
#define NAME value	Object-like macro: textual replacement
#if / #elif / #else / #endif	Conditional inclusion
#ifdef / #ifndef	Shorthand for whether a macro is defined
#error message	Force a compile-time failure with a message

Function-like macros (#define MAX(a, b) ...) are not supported. Use constexpr helpers in ordinary C++.

Tile geometry as macros

Production matmul sources centralize tile dimensions at the top:

#define MATMUL_WARP_M 64
#define MATMUL_WARP_N 128
#define MATMUL_TILE_K 64
#define MATMUL_WARP_K 16
#define MATMUL_STAGES 4

The same names appear in parallel, shared-memory declarations, foreach bounds, and host-side verification.

Compile-time assertions with #error

#if MATMUL_SWIZ != (2 * MATMUL_TILE_K)
#error "MATMUL_SWIZ must equal 2 * MATMUL_TILE_K for f16 kernel"
#endif

#if MATMUL_WARP_M != 64
#error "MATMUL_WARP_M must be 64 for f16 WGMMA constraints"
#endif

Treat these guards as documentation of hardware constraints.

Conditional code paths

#define PATH0

__co__ foo() {
  #ifdef PATH0
    // path 0 code
  #else
    // path 1 code
  #endif
}

The preprocessor keeps one branch and discards the other before Croqtile parses the __co__ body. Command-line defines: croqtile kernel.co -DMATMUL_TILE_K=128.

Reading a production .co file

When you open a benchmark kernel, read top down:

1. Macros and #error guards — The contract: allowed tile sizes, swizzle rules, architecture flags.
2. __device__ functions — Helper algorithms (top-K, reductions, shuffle wrappers) that Croqtile passes through.
3. Host setup — Buffers, launch configuration, timing; ordinary C++.
4. The __co__ function — Orchestration: parallel, foreach, TMA/MMA, inthreads.async, events. Map each region back to earlier chapters.
5. __cpp__ islands — Usually a handful of lines. Pause on each and ask what the hardware receives that the DSL does not spell.

Chapter summary

Syntax	What it does	Runs on
__device__ fn()	Standard CUDA device function; passed through unchanged to .cu	GPU
call fn(args)	Invoke a __device__ function from a __co__ body	GPU
__cpp__("...")	Inject verbatim C++ at the splice point (ordinary string)	GPU
__cpp__(R"(...)")	Inject verbatim C++ (raw string; use for asm volatile)	GPU
setmaxnreg	Register redistribution via __cpp__: dec on producer, inc on consumer	GPU
#define NAME value	Object-like macro; shared across __co__ and host regions	Preprocessor
#if / #ifdef / #error	Conditional compilation and compile-time assertions	Preprocessor
-DNAME=value	Define macros from the command line for tile sweeps	Preprocessor

The next chapter turns to the other side of the workflow: what to do when the kernel compiles but the output is wrong — debugging, verbose modes, and systematic narrowing.
