Control Flow: Divergence, Concurrency, and Coordination¶

Every programming language that targets a parallel machine must answer one question: what happens when different threads need to do different things?

On a CPU, the answer is trivial — each core has its own program counter, so each thread runs whatever code it likes. On a GPU, the answer is deeply constrained. The SIMT (Single Instruction, Multiple Thread) execution model groups threads into warps of 32 that share a single instruction pointer. When a branch sends some threads one way and other threads another way, the hardware cannot simply fork — it must serialize the divergent paths and mask inactive threads. This is the fundamental tension of GPU programming languages: the hardware wants uniformity, but real programs need heterogeneity.

CUDA exposes exactly one control-flow primitive for this: if. All threads evaluate the condition; threads where it is false are masked (deactivated); both paths execute sequentially within the warp. This is predicated execution — simple, universal, and sometimes ruinously expensive. A warp that diverges on an if runs both sides, throwing away half its throughput on each.

But predicated execution is not enough. Consider a matmul kernel where one group of threads should continuously fetch tiles from global memory while another group continuously multiplies tiles on the tensor cores. This is not a data-dependent branch — it is two structurally different programs that happen to share an address space. Trying to express this with if means one program pauses while the other runs. There is no overlap, no pipeline.

Croqtile introduces two additional control-flow primitives to fill this gap:

inthreads.async — structured concurrent regions: compile-time partitioning of threads into groups that run different programs simultaneously. The compiler generates separate instruction streams; the hardware schedules them independently.
shared event / wait / trigger — inter-region signaling: lightweight synchronization tokens that let concurrent regions communicate safely.

Together with if, these three primitives cover the full spectrum of control flow in a GPU kernel: data-dependent branching, structural program composition, and inter-program coordination.

Predicated execution with `if`¶

Croqtile's if behaves like its C counterpart:

if (tile_id < total_tiles) {
  // body executes only when the condition is true
}

All threads in scope evaluate the condition. Threads where it is false skip the body. Within a single warp, if some threads take the branch and others do not, the hardware serializes the two paths — threads on the skipped side sit idle while the taken side runs, then vice versa. This is warp divergence, and it is the price of runtime flexibility.

When to use if: data-dependent decisions that cannot be resolved at compile time. Bounds checks, partial-tile guards, conditional accumulation. The condition can depend on runtime values — loop indices, input data, tile coordinates.

Cost model: divergence within a warp serializes both paths. Divergence across warps (where all threads in each warp agree) costs nothing — the hardware simply skips the not-taken path. The practical rule: keep if conditions warp-uniform (all 32 threads agree) whenever possible.

Structured concurrent regions with `inthreads.async`¶

inthreads.async solves a fundamentally different problem than if. Instead of asking "should this thread execute this code?" at runtime, it says "this group of threads runs this program, that group runs that program" at compile time.

parallel p1 by 2 : group-4 {

  inthreads.async (p1 == 0) {
    // program A: only warpgroup 0 compiles and runs this
  }

  inthreads.async (p1 == 1) {
    // program B: only warpgroup 1 compiles and runs this
  }
}

The distinction from if is structural, not just performance:

	`if` (predicated execution)	`inthreads.async` (structured concurrency)
Resolution	Runtime — every thread evaluates the condition	Compile time — thread assignment is fixed
Instruction streams	One program; divergent threads masked	Separate programs per region
Execution	Serial within a warp if divergent	Concurrent across warpgroups
PL analogy	`if`/`else` in any language	`async`/`spawn` in structured concurrency (Trio, Go goroutines, Cilk)
GPU analogy	SPMD with masking	MPMD within a single kernel launch

Why "structured"? The regions are lexically scoped — the compiler knows at parse time which threads belong to which region. There is no dynamic spawn, no unbounded concurrency. Each inthreads.async block is a static partition. This is what makes it amenable to compile-time analysis: the compiler can allocate registers differently for each region, emit different instruction schedules, and verify that shared resources are used safely.

The .async modifier. Without .async, inthreads would execute regions sequentially — thread subsets take turns. The .async suffix is the concurrency modifier: it tells the compiler and hardware that the regions may overlap in time. This is analogous to the async keyword in structured concurrency frameworks — it marks a region as independently schedulable.

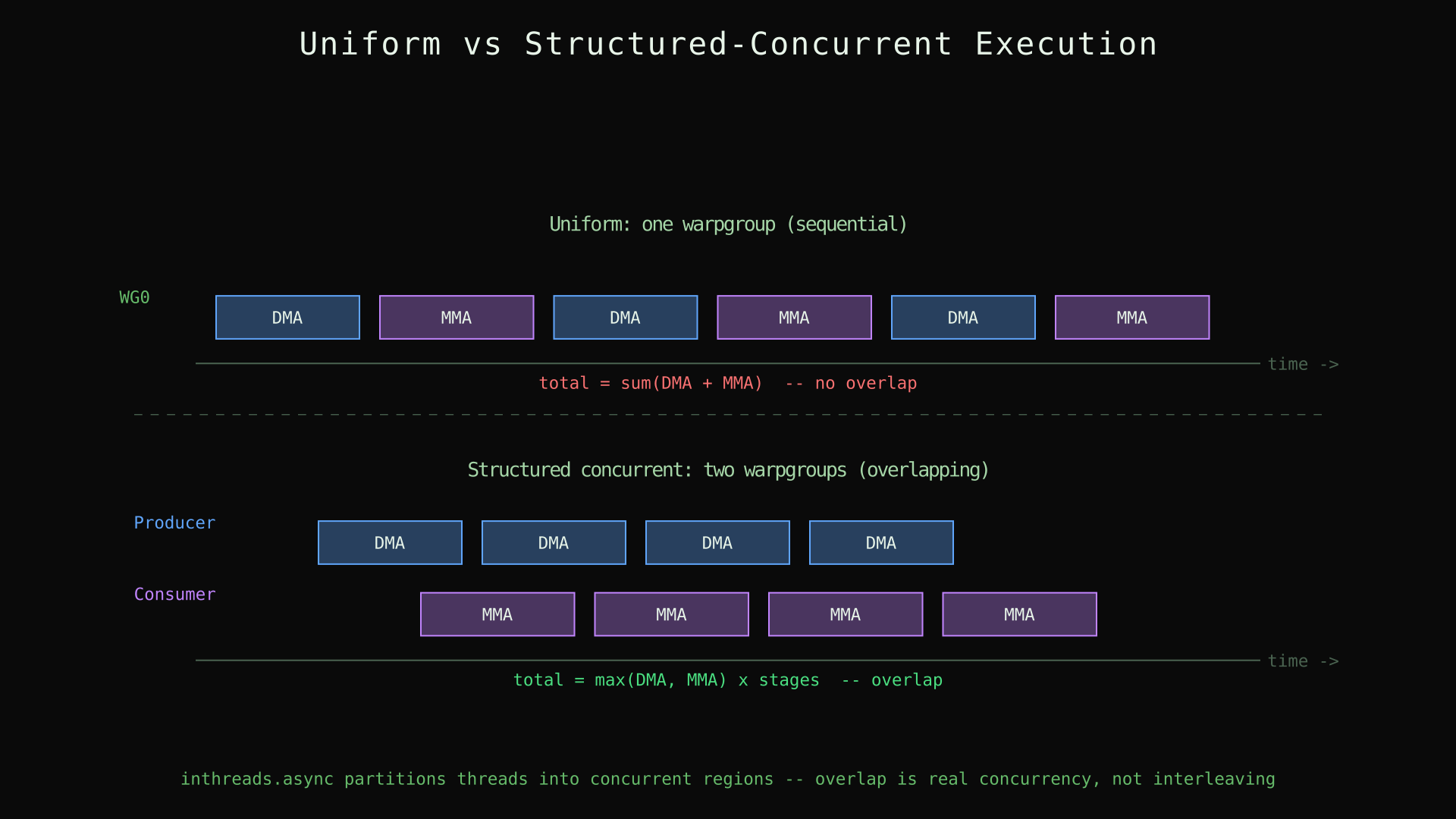

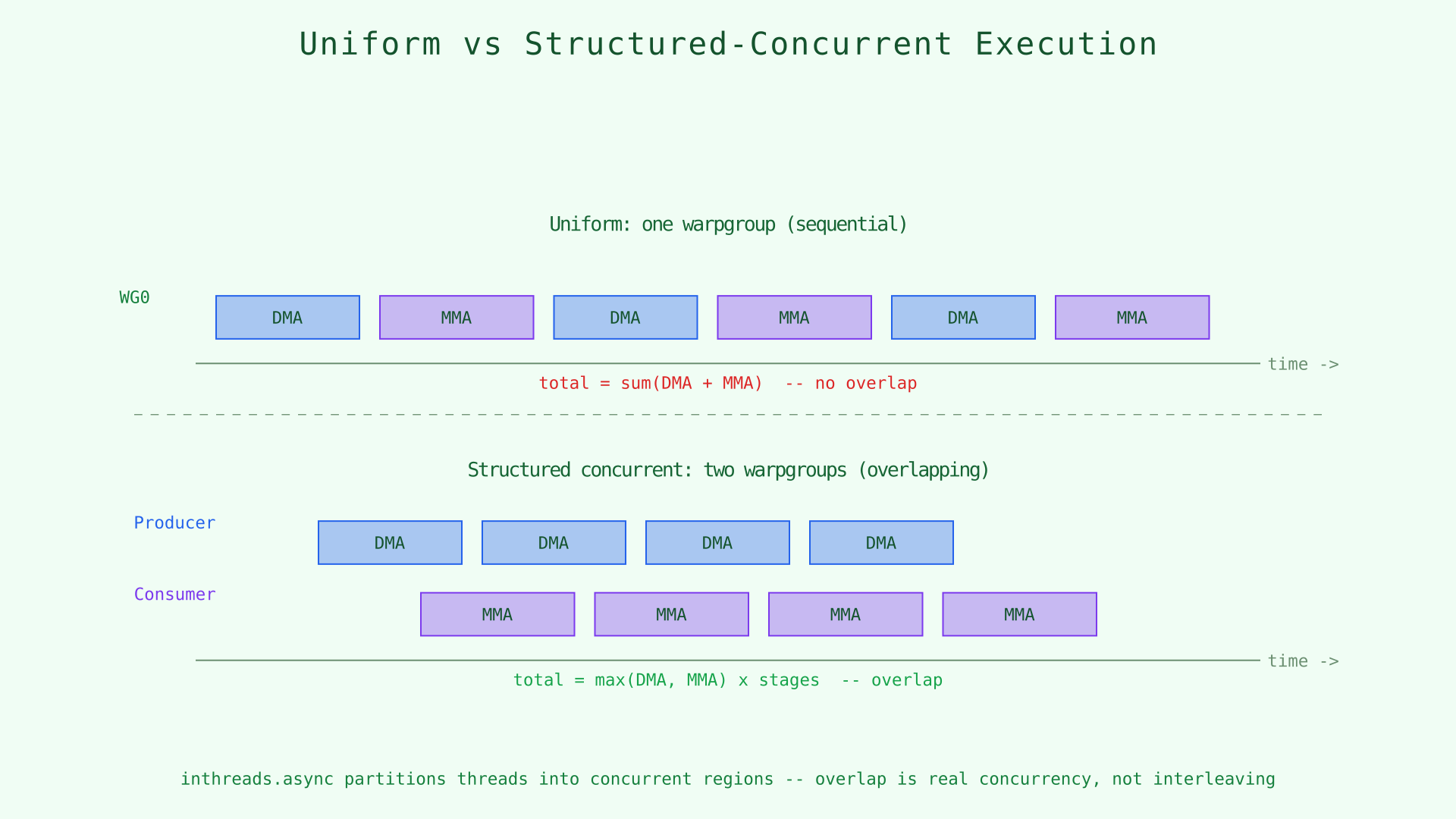

The figure below shows the effect. The top timeline shows a single warpgroup alternating between DMA and MMA (sequential, no overlap). The bottom shows two warpgroups with inthreads.async — the producer's DMA and the consumer's MMA overlap in time:

Uniform vs structured-concurrent execution: sequential alternation vs overlapping regions

Top: one warpgroup alternates DMA and MMA — each waits for the other. Bottom: inthreads.async partitions into two concurrent programs — DMA and MMA overlap, roughly halving wall-clock time.

The canonical pattern: 1 producer + 1 consumer¶

The most common use of inthreads.async is the 1P1C (one producer, one consumer) split for matmul:

parallel p1 by 2 : group-4 {

  inthreads.async (p1 == 0) {
    // producer: only warpgroup 0 runs this
    // issue DMA / TMA loads, fill shared memory
  }

  inthreads.async (p1 == 1) {
    // consumer: only warpgroup 1 runs this
    // run MMA on shared memory, accumulate results
  }
}

parallel p1 by 2 : group-4 — Two warpgroups (128 threads each), indexed by p1.

inthreads.async (p1 == 0) — Warpgroup 0 compiles and runs the producer body; warpgroup 1 never sees this code.

inthreads.async (p1 == 1) — Warpgroup 1 runs the consumer body. The two blocks are separate programs sharing an address space.

But sharing an address space is exactly what makes this dangerous. Without coordination, the consumer might read a buffer before the producer has finished writing it. This is where events come in.

Inter-region signaling with events¶

When inthreads.async creates concurrent regions, those regions need a way to communicate. Croqtile provides events — lightweight synchronization tokens declared in shared memory:

shared event full;
shared event empty;

Events have two operations:

trigger name — signal that a condition is met (e.g., "data is ready")
wait name — block until the corresponding trigger fires

The producer calls trigger full after writing a tile to signal "data ready." The consumer calls wait full before reading, blocking until the signal arrives. Symmetrically, the consumer triggers empty after finishing its read (the buffer can be reused), and the producer waits on empty before writing the next tile.

This is a credit-based bounded buffer protocol — the same pattern used in operating systems (semaphores), network flow control (TCP window), and hardware (warp barriers). full is the "data available" credit; empty is the "buffer free" credit.

Event arrays for multi-stage pipelines¶

For pipelines with multiple buffered stages, declare event arrays:

shared event full[STAGES], empty[STAGES];

Each physical buffer slot gets its own full/empty pair. The ring index stage = iv_k % STAGES maps the unbounded K iteration to a fixed number of physical slots. With four stages, the producer can run several tiles ahead before blocking on wait empty.

Bootstrap protocol¶

The consumer must seed the empty credits before the K-loop starts:

foreach {s} in [STAGES] {
  trigger empty[s];
}

Without this bootstrap, the producer's first wait empty[0] blocks forever — a deadlock, not a mysterious MMA bug. This is a common pitfall: every bounded buffer protocol requires initial credits.

Chapter 6 develops the full double-buffered and multi-stage pipeline kernels that put these primitives to work. The examples there compose inthreads.async, events, swap, and mma.commit into complete, runnable matmul pipelines.

A 1P1C matmul skeleton¶

Here is how the three primitives sit together inside a Hopper matmul. Event-based synchronization is omitted — Chapter 6 adds the full pipeline protocol. Focus on the program structure:

__co__ void matmul(global f16 [M, K] lhs, global f16 [N, K] rhs, global f16 [M, N] output) {
  parallel {block_m, block_n} by [cdiv(M, WARP_M), cdiv(N, WARP_N)] : block {
    shared f16 [WARP_M, TILE_K] lhs_load_s;
    shared f16 [WARP_N, TILE_K] rhs_load_s;
    shared f16 [WARP_M, WARP_N] output_s;

    parallel p1 by 2 : group-4 {

      inthreads.async (p1 == 0) {
        foreach {iv_k} in [cdiv(K, TILE_K)] {
          dma.copy lhs.subspan(WARP_M, TILE_K).at(block_m, iv_k) => lhs_load_s;
          dma.copy rhs.chunkat(block_n, iv_k) => rhs_load_s;
        }
      }

      inthreads.async (p1 == 1) {
        mc = mma.fill.f16 0.0f;
        foreach {iv_k} in [cdiv(K, TILE_K)] {
          foreach {iv_warp} in [cdiv(TILE_K, WARP_K)] {
            ma = mma.load lhs_load_s.chunkat(_, iv_warp);
            mb = mma.load rhs_load_s.chunkat(_, iv_warp);
            mma.row.row mc, ma, mb;
          }
        }
        mma.store mc, output_s;
        dma.copy output_s => output.subspan(WARP_M, WARP_N).at(block_m, block_n);
      }
    }
  }
}

Producer foreach — Walks K with cdiv(K, TILE_K) steps; warpgroup 0 issues dma.copy into shared memory.

Consumer mma path — Warpgroup 1 never touches those DMAs; it reads shared memory, accumulates in mc, and writes the result.

Missing coordination — Both sides loop over K independently. The consumer assumes each K-slab is ready when it reads. Making that assumption correct requires events (Chapter 6).

Persistent scheduling and the `if` guard¶

In Chapters 3–4, the grid grew with the problem: roughly one block per output tile. For large matrices that means large launch counts, and the last wave of blocks often leaves SMs partially idle — tail underutilization.

A persistent kernel fixes the launch size (often near the SM count) and lets each block iterate over multiple tiles:

__co__ void matmul(global f16 [M, K] lhs, global f16 [N, K] rhs, global f16 [M, N] output) {
  int total_tiles = cdiv(M, WARP_M) * cdiv(N, WARP_N);

  parallel block_id by NUM_SMS : block {
    shared f16 [WARP_M, TILE_K] lhs_load_s;
    shared f16 [WARP_N, TILE_K] rhs_load_s;
    shared f16 [WARP_M, WARP_N] output_s;

    foreach {tile_iter} in [cdiv(total_tiles, NUM_SMS)] {
      tile_id = tile_iter # block_id;

      if (tile_id < total_tiles) {
        block_m = tile_id / cdiv(N, WARP_N);
        block_n = tile_id % cdiv(N, WARP_N);

        mc = mma.fill.f16 0.0f;
        foreach {iv_k} in [cdiv(K, TILE_K)] {
          dma.copy lhs.subspan(WARP_M, TILE_K).at(block_m, iv_k) => lhs_load_s;
          dma.copy rhs.subspan(WARP_N, TILE_K).at(block_n, iv_k) => rhs_load_s;

          foreach {iv_warp} in [cdiv(TILE_K, WARP_K)] {
            parallel p by 1 : group-4 {
              ma = mma.load lhs_load_s.chunkat(_, iv_warp);
              mb = mma.load rhs_load_s.chunkat(_, iv_warp);
              mma.row.row mc, ma, mb;
            }
          }
        }
        mma.store mc, output_s;
        dma.copy output_s => output.subspan(WARP_M, WARP_N).at(block_m, block_n);
      }
    }
  }
}

parallel block_id by NUM_SMS : block — Fixed worker count.

tile_id = tile_iter # block_id — Composes iteration with block index to stripe across tiles.

if (tile_id < total_tiles) — The if guard: a runtime predicate that skips the body for padding iterations. This is exactly the use case if is designed for — a data-dependent decision, not a structural partition.

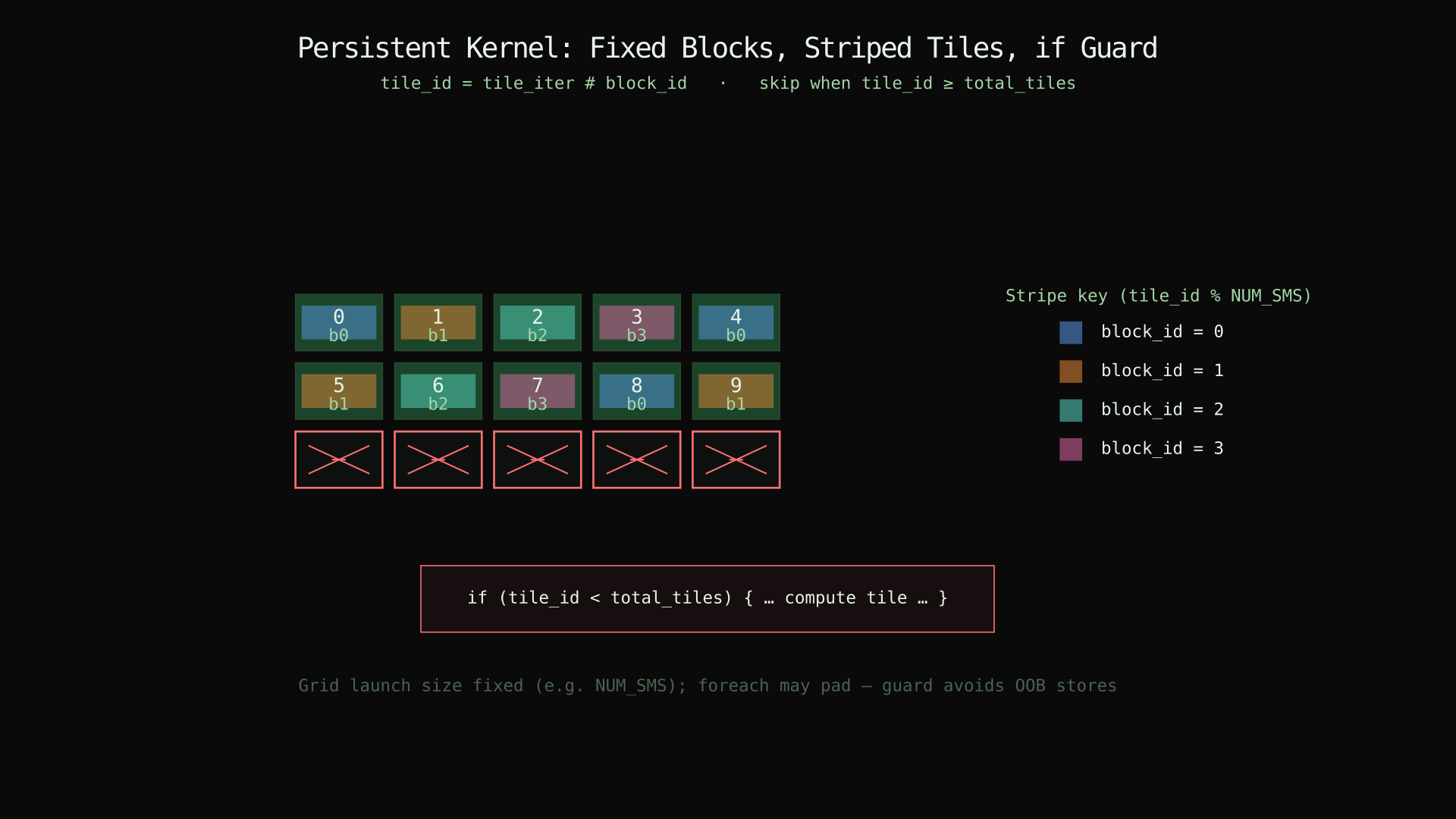

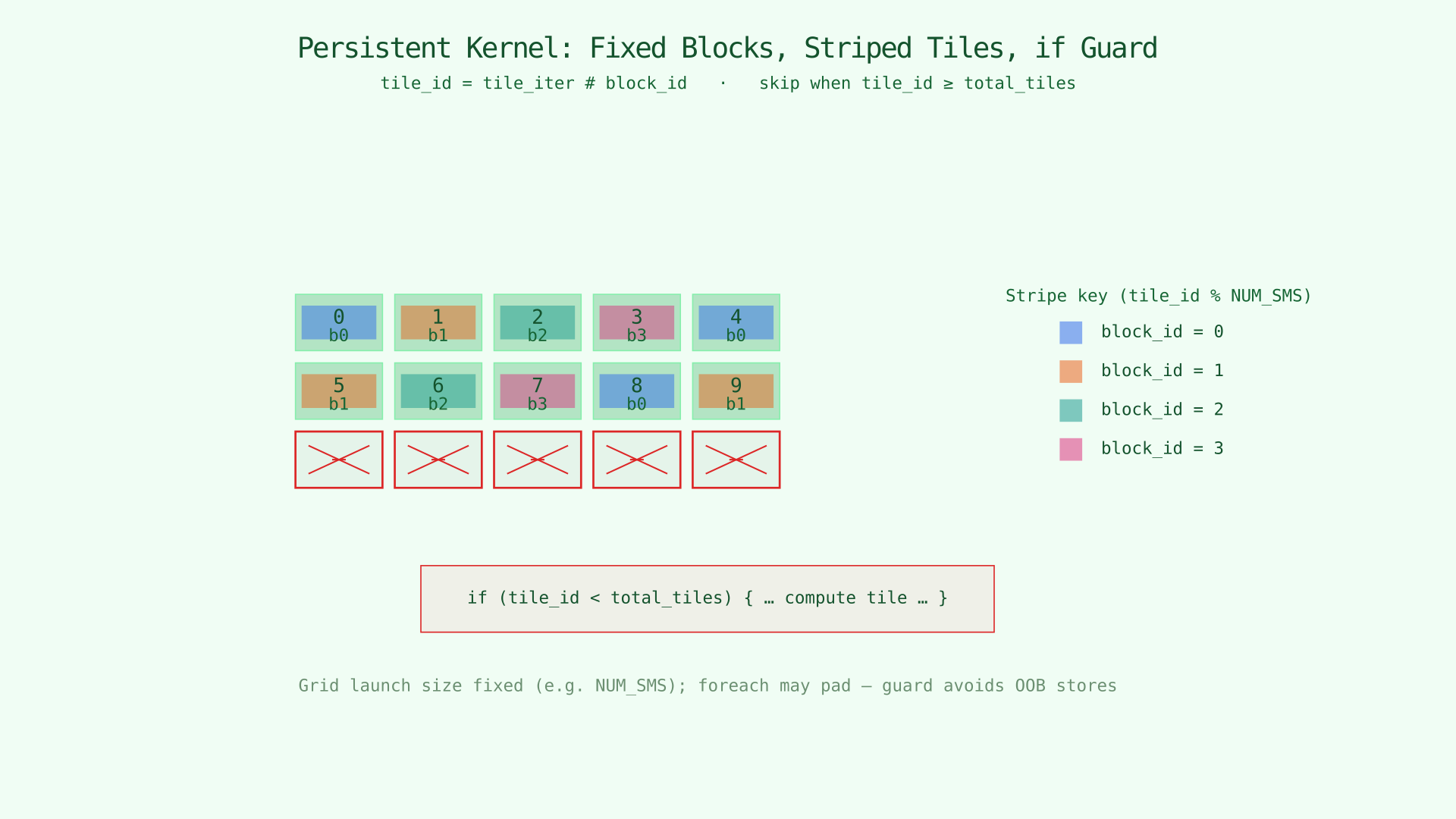

Persistent kernel: striped tiles, block colors, and if guard for padding

Data-dependent vs persistent grids¶

Aspect	One block per tile	Persistent (`NUM_SMS` blocks)
Grid size	Grows with problem	Fixed
Tail utilization	Last wave may leave SMs idle	All SMs stay busy
Extra constructs	Minimal	`total_tiles`, `tile_iter # block_id`, `if`
Complexity	Lower	Higher

`parallel.async`: host-level concurrency¶

Everything above runs inside a kernel. Sometimes you need concurrency at the host level: launch a grid without blocking the CPU.

parallel.async {px, py} by [grid_m, grid_n] : block {
  // kernel body
}

parallel.async returns control to the host immediately — the kernel is enqueued but the host does not wait for completion. This is the Croqtile equivalent of cudaLaunchKernel with a non-default stream.

This is host orchestration, orthogonal to in-kernel control flow. It does not replace inthreads.async for thread partitioning or if for runtime predicates — it decides when and where a grid runs relative to other grids.

Early return from `parallel`¶

Sometimes you need to early return from a parallel block. The yield keyword will simply generate a return; instruction to get out of device code.

parallel p by BLK_CNT: block {
  parallel q by THR_CNT : thread {
    if (cond) yield;
    ...
  }
}

Warning

The yield keyword currently will not do any compile-time nor runtime checks. Be careful about synchronization safety.

New syntax¶

Syntax	Meaning
`if (expr) { ... }`	Predicated execution — runtime conditional, divergent threads masked
`inthreads.async (condition)`	Structured concurrent region — compile-time thread partitioning
`shared event name`	Declare a synchronization token in shared memory
`shared event name[N]`	Declare N synchronization tokens
`trigger name`	Signal that a condition is met
`wait name`	Block until the corresponding `trigger` fires
`tile_id = tile_iter # block_id`	Compose indices for tile striping
`int total_tiles = expr`	Local integer variable
`parallel.async ... : block`	Non-blocking kernel launch
`yield`	Early return from `parallel` block

Chapter summary¶

Concept	Primitive	When to use
Predicated execution	`if`	Data-dependent decisions (bounds, conditions)
Structured concurrency	`inthreads.async`	Compile-time thread partitioning (producer/consumer, heterogeneous roles)
Inter-region signaling	`shared event` / `wait` / `trigger`	Coordination between concurrent regions
Host concurrency	`parallel.async` / `stream s`	Multi-kernel overlap, non-blocking launch
Persistent scheduling	`if` + `foreach` + `#`	Fixed grid size, tile striping with padding guard

The 1P1C skeleton above is incomplete: without wait / trigger, the consumer can read before the producer has finished writing. Chapter 6 adds the full synchronization protocols — swap for single-schedule double buffering, events for multi-warpgroup pipelines — so the pipeline runs safely and at full throughput.
